GAME Assembly tools For Installing GRIP Self-Clinching Fasteners

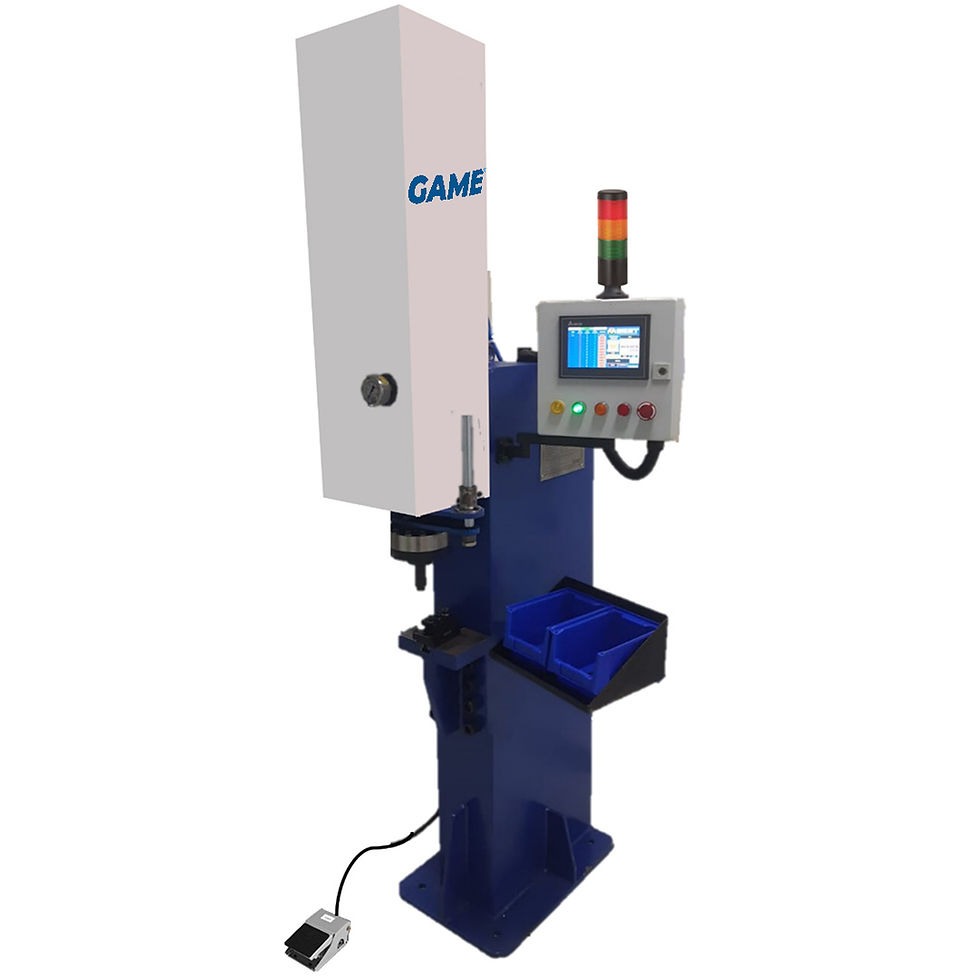

C - Frame type Hydro Pneumatic & Hydraulic PLC Controlled Tool

Key Features:

Customizable Frame Design: Adjustable to fit specific assembly needs, enhancing versatility and adaptability.

Advanced PLC & HMI Control: 7” HMI with PLC integration for intuitive operation, batch programming, and production data management.

Production Data Management: Features production data backup, batch programming, and real-time error recording for efficient operation.

Enhanced Safety Features: Includes a finger safety sensor and optional auto feed system for improved protection and productivity.

Versatile Tooling Options: J-Anvil and rotating anvil available for accessing critical jobs and quick tool changes.

Optional Auto Feed System: Choose from different auto feeding options, suitable for various tooling needs and supports lengths up to 30m.

Error Signaling & Control: Provides real-time error signaling, recording, and MAS control screen for managing auto feed, eject time, and vibration.

Specifiction:

Load Range: 0-4 Ton, 0-8 Ton, Up to 15 Ton

Throat Depth: 450mm Standard, Up to 800mm

Open Height: 85mm, Customizable

Operating System: Hydro Pneumatic & Hydraulic

Controller: PLC with 7” HMI Display, batch production programming, job counters, error signaling, and production data backup

Structure: C-Frame

Programming Capacity: Stores up to 999 programs for diverse assembly needs
